5.1 Surround

51 mix dolby atmos dolby digital thx

Standard surround sound format with 5 full-range speakers plus subwoofer, established in 1992 for theatrical and home cinema use. Foundation for immersive audio with spatial sound distribution around the audience.

Technical Specifications

5.1 Surround refers to the speaker setup for playing 5.1 mixes: 5 full-range speakers plus 1 subwoofer.

Speaker Positions (ITU-R BS.775 Standard):

Front Left (L): 30° left of center, ear height
Center (C): Directly in front of the viewer, below/above screen
Front Right (R): 30° right of center, ear height
Surround Left (Ls): 100-120° left, slightly elevated
Surround Right (Rs): 100-120° right, slightly elevated
Subwoofer (LFE): Position flexible, typically front

Technical Requirements:

Front Frequency Range: 80Hz-20kHz (with subwoofer bass management)
Surround Frequency Range: 80Hz-20kHz
Subwoofer Range: 20-120Hz
SPL Capability: 105dB (home theater), 115dB (cinema)

Calibration:

Reference Level: 85dB SPL at -20dBFS (THX Standard)
Subwoofer Level: +10dB relative to main channels
Crossover Frequency: 80-120Hz (typically 80Hz)

History & Development

5.1 Surround was introduced in 1992 with Dolby Digital, replacing the matrix-based Dolby Stereo. The discrete channels enabled precise spatial positioning without crosstalk for the first time.

THX (founded 1983) standardized cinema playback for 5.1 – speaker placement, acoustics, and levels were certified. THX certification guaranteed consistent playback of the mix intention.

With DVD (1997) and home theater receivers, 5.1 Surround became the consumer standard. Prices for surround systems fell, and millions of households installed 5.1 setups.

Practical Application & Setup

Cinema Installation: Professional cinemas use multi-speaker arrays – the "Surround" channel is distributed across 4-16 speakers for diffuse envelopment. THX-certified cinemas guarantee correct playback.

Home Theater Setup: Consumer systems range from soundbars with virtual surround effects to dedicated 5.1 systems with floor-standing speakers. Positioning is critical for correct imaging.

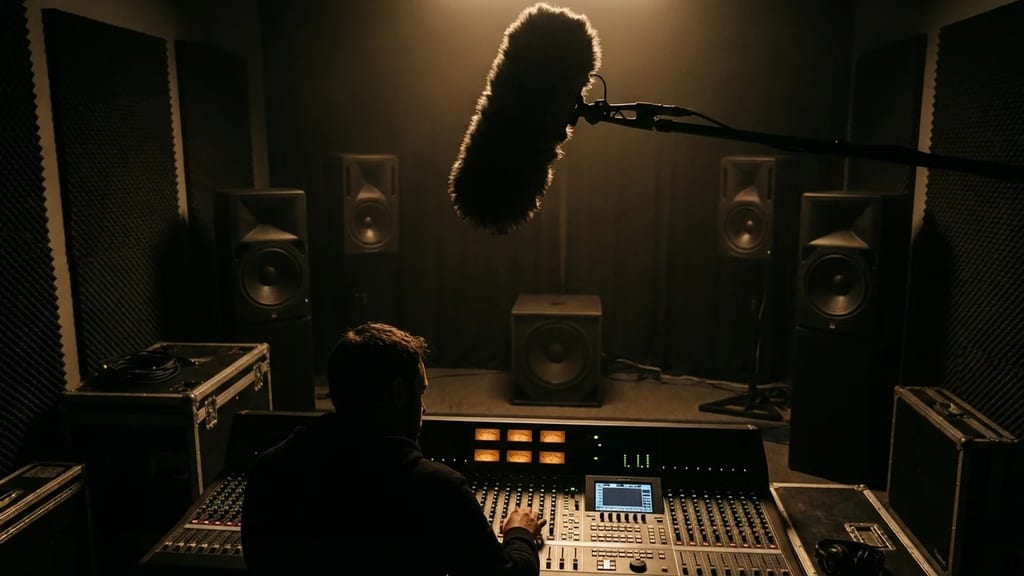

Studio Monitoring: Professional mix studios use precisely calibrated 5.1 setups with acoustic treatment. Reference monitors (Genelec, ADAM, Neumann) ensure neutral playback.

Limitations & Extensions

Limitations of 5.1:

No height channels (ceiling sounds)
Limited surround precision (only 2 rear channels)
Phantom center issues for off-axis seating

Extensions:

7.1: Additional back surround channels for more precise rear imaging
Dolby Atmos: Object-based audio with height channels
DTS:X: Competitor to Atmos with similar capabilities

Downmix Compatibility: 5.1 content is automatically downmixed to stereo (L/R) for TV and mobile. Mixing decisions consider these fold-down scenarios.

The main advantage of 5.1 Surround remains its universal availability – practically every playback device and content supports 5.1, while newer formats (Atmos, DTS:X) require additional hardware.

From the crafts

Perspectives

Cinematographer

5.1 Surround influences my camera work – if sound comes from behind, the image has to prepare or react. Spatial audio distribution requires visual continuity. I coordinate with the sound mixer which off-screen elements are acoustically established.

Director

5.1 Surround is my standard playback system for cinema and home theater. The 5 speakers plus subwoofer create a sound environment that envelops the viewer. I plan scenes with the surround placement in mind – where is the threat coming from, where is the safe zone, how does the action move through the space.

Producer

5.1 Surround is the universal standard – every cinema, every home theater system supports it. The installation is relatively inexpensive (5 speakers + subwoofer, from 500 Euros consumer-grade up to 50,000 Euros for cinema systems). Content availability is maximal – Blu-ray, streaming, cinema, everything delivers 5.1.
