Der Reference Pass ist mein technischer Pass. Hier geht es nicht um das schöne Bild, sondern um die Daten – Tracking-Marker im Bild, sauber ausgeleuchtet, damit VFX die Kamerabewegung perfekt rekonstruieren kann.

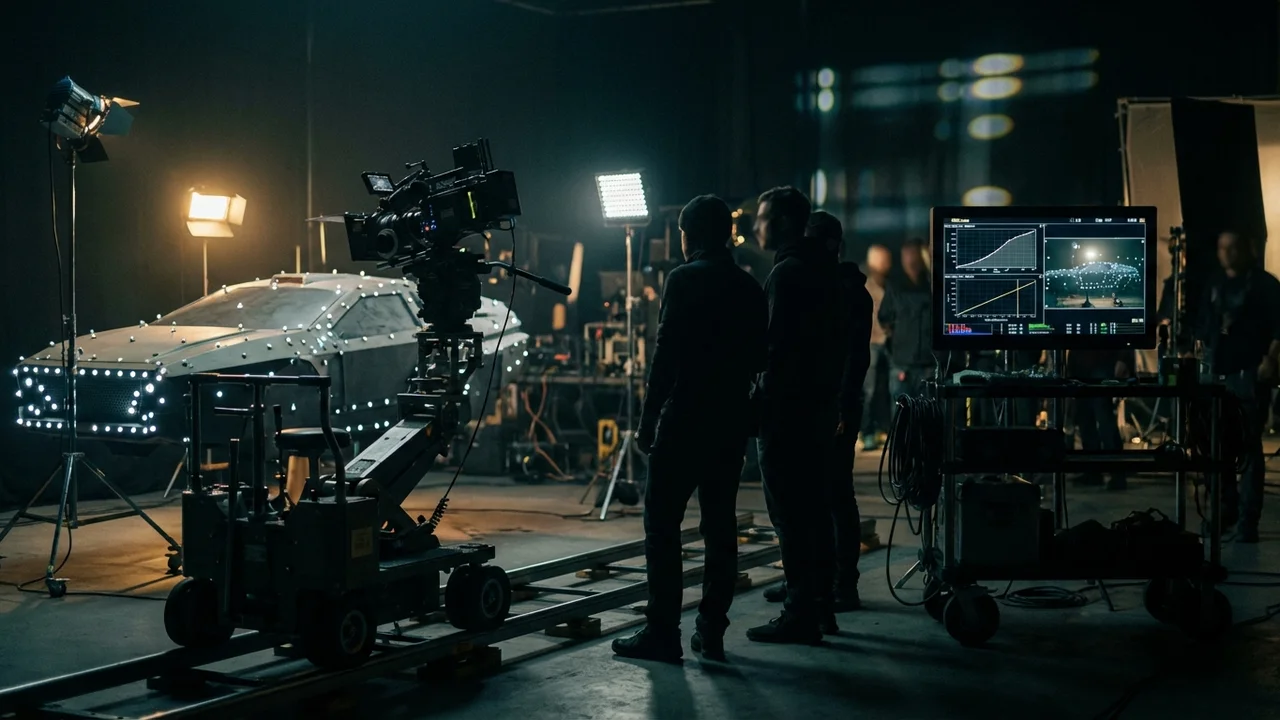

A motion-control recording with visible tracking markers – provides the data for 3D camera tracking and CGI integration. Recorded before the beauty pass.
What is a Reference Pass?
A Reference Pass (also: Tracking Pass) is a motion control shot with visible tracking markers that serves as the basis for 3D camera tracking and CGI integration. The markers enable VFX software to reconstruct the exact camera movement – essential for seamless compositing.
Technical Definition
| Aspect | Details |
|---|---|
| Function | Data for 3D tracking |
| Content | Set with tracking markers |
| Quality | Working copy (not final) |
| Position in Workflow | Before Beauty Pass |
Tracking Markers
Marker Types
| Type | Description | Application |
|---|---|---|
| Tape Markers | Simple crosses made of tape | Low-budget |
| Tracking Dots | Printed markers | Standard |
| Spheres | 3D spheres | Light reference |
| LED Markers | Illuminated dots | Low-light |
Marker Placement
| Area | Strategy |
|---|---|
| Foreground | Close to the camera |
| Midground | Main action area |
| Background | Walls, floor |
| Distribution | Evenly throughout the space |
What the Reference Pass Delivers
For VFX
| Data | Benefit |
|---|---|
| Camera Position | xyz in 3D space |
| Camera Rotation | Pan, tilt, roll |
| Focus Distance | For depth of field |
| Set Geometry | 3D reconstruction |
For CGI Integration
| Application | Description |
|---|---|
| Virtual Camera | Identical movement in 3D |
| Object Insertion | Placing CGI |
| Environment Extension | Expanding the set |
| Character Animation | Inserting a character |
Workflow: Reference Pass
Preparation
| Step | Description |
|---|---|
| Place Markers | Distribute throughout the set |
| Numbering | Unique IDs |
| Survey | Measure positions |
| Lighting | Make markers visible |
Shooting
| Phase | Description |
|---|---|
| Program Move | Define camera movement |
| Shoot Reference | With all markers |
| Remove Markers | For Beauty Pass |
| Shoot Beauty | Final version |
Post-Production
| Step | Description |
|---|---|
| Import | Reference into tracking software |
| Track | Automatically track markers |
| Solve | Reconstruct camera |
| Export | Data for 3D software |
Reference Pass vs. Other Passes
| Pass Type | Content | Purpose |
|---|---|---|
| Reference Pass | With markers | Tracking data |
| Beauty Pass | Final shot | Hero shot |
| Clean Pass | Without subject | Compositing basis |
| Lighting Pass | Alternative lighting | Flexibility |
Software for Tracking
| Software | Manufacturer | Specialty |
|---|---|---|
| SynthEyes | Andersson Tech | Specialized |
| PFTrack | The Pixel Farm | Industry standard |
| 3DE | Science-D-Visions | High-end |
| After Effects | Adobe | Integrated |
| Nuke | Foundry | VFX standard |
Best Practices
Marker Rules
| Rule | Description |
|---|---|
| Contrast | Clearly visible against background |
| Size | At least 10 pixels in frame |
| Overlap | Never two markers on top of each other |
| Distribution | No large gaps |
Shooting Tips
| Aspect | Recommendation |
|---|---|
| Framerate | Identical to Beauty Pass |
| Focus | Markers sharp |
| Exposure | Markers not blown out |
| Slate | Clearly marked |
Typical Problems
| Problem | Solution |
|---|---|
| Markers too small | Move closer or make larger |
| Too few points | Distribute more |
| Markers occluded | Change position |
| Out of focus | Adjust depth of field |
| Overexposed | Dim lighting |
Application Examples
CGI Character
| Pass | Content |
|---|---|
| Reference | Set with markers + stand-in |
| Beauty | Actor without markers |
| Clean | Empty set |
| Composite | CGI character inserted |
Set Extension
| Pass | Content |
|---|---|
| Reference | Partial set with markers |
| Beauty | Partial set without markers |
| CGI | Virtual set extended |
The Legacy
Development
- Film Era: Manual tracking points
- Digital: Automatic tracking
- Today: AI-assisted tracking
Influence
The Reference Pass has made precise CGI integration possible – without it, virtual and real footage would never seamlessly match.
Today
| Aspect | Details |
|---|---|
| Frequency | Standard in VFX productions |
| Trend | Fewer markers thanks to AI |
| Software | Ever-improving automation |
| Workflow | Integrated with real-time |
Modern Development
AI-based tracking requires fewer and fewer markers – but the Reference Pass remains important for complex camera movements and precise CGI integration.
