Die H16 war meine Filmschul-Kamera – 28 Sekunden pro Aufzug lehren Disziplin. Kein Luxus endloser Takes, jede Einstellung muss sitzen. Heute nutze ich sie für Musikvideos und Kunstprojekte, wenn ich den mechanischen Look will.
Legendary Swiss 16mm spring-wound camera (since 1935), battery-free. Standard teaching camera at film schools worldwide, favored by experimental and avant-garde filmmakers.
What is the Bolex H16?

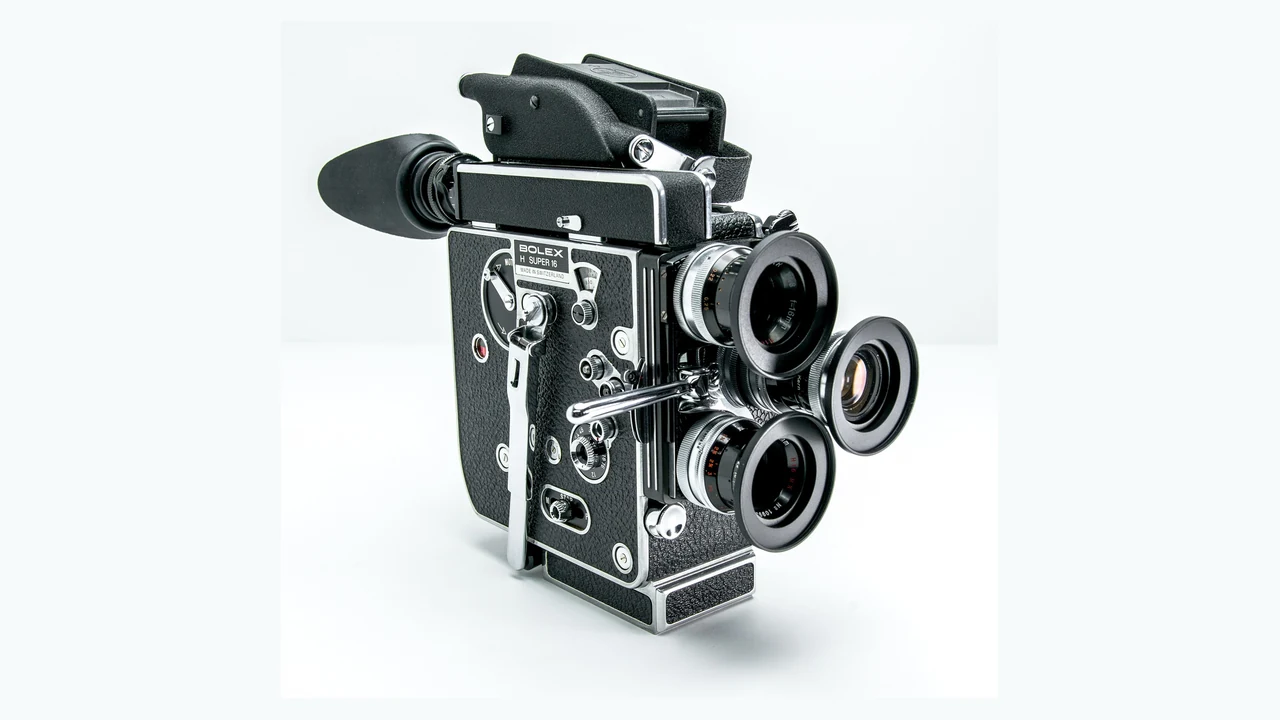

The Bolex H16 is a mechanical 16mm film camera that has been in production since 1935 – one of the longest-running camera series in history. Powered by a spring motor (without batteries), it became the standard learning camera at film schools worldwide and a tool for experimental film, animation, and independent productions.
Technical Specifications
| Feature | H16 Standard | H16 Reflex (REX) | H16 SBM |
|---|---|---|---|
| Format | 16mm | 16mm | 16mm/Super-16 |
| Introduction | 1935 | 1956 | 1970 |
| Weight | 2.0 kg | 2.2 kg | 2.3 kg |
| Drive | Spring motor | Spring motor | Spring motor |
| Run time/Wind | 28 sec | 28 sec | 28 sec |
| Frame Rate | 8–64 fps | 12–64 fps | 12–64 fps |
| Viewfinder | Parallax | Reflex | Reflex |
| Mount | C-Mount | C-Mount/Bayonet | C-Mount/Bayonet |
Key Features
- Spring Motor Drive – 8 turns = 28 seconds @ 24 fps
- Variable Speed – 8 to 64 fps possible
- Single Frame Function – Frame-by-frame exposure
- Three-Lens Turret – Quick lens changes
- Fully Mechanical – No batteries required
- Internal Magazine – 30m (100 ft) = approx. 2:45 min @ 24 fps
The Evolution of the H16
H16 Standard (1935)
- Parallax viewfinder (not through the lens)
- Three-lens turret
- Basic design established
H16 Reflex (REX) (1956)
- Revolution: Single-lens reflex (SLR) viewfinder
- Viewing through the taking lens
- More precise focusing possible
- Variants: REX-1 to REX-5
H16 SBM (1970)
- Super-16 capable (with modification)
- Improved mechanics
- Bayonet mount in addition to C-mount
H16 EBM (1970)
- Electric drive – End of the spring motor era
- Longer run times possible
- Crystal sync capable
Notable Works
| Filmmaker | Work | Year | Significance |
|---|---|---|---|
| Maya Deren | Meshes of the Afternoon | 1943 | Avant-garde classic |
| Stan Brakhage | Dog Star Man | 1964 | Experimental film |
| Jonas Mekas | Walden | 1969 | Diary film |
| Kenneth Anger | Scorpio Rising | 1963 | Underground cinema |
| Agnès Varda | L'Opéra-Mouffe | 1958 | Nouvelle Vague |
| Derek Jarman | In the Shadow of the Sun | 1980 | Super-8/16mm art |
Film School Standard
The H16 became the preferred learning camera because:
Educational Advantages
- Discipline – 28 seconds enforce planning
- Film Costs – Waste hurts, learning happens
- Understanding Mechanics – No black-box technology
- Craftsmanship – Manual focus, aperture, exposure
Technical Advantages
- Affordable – Schools can acquire multiples
- Robust – Mechanics withstand student handling
- Spare Parts – Still available
- Simple – Few moving parts
Practical Workflow
Preparation
- Load film (darkness or changing bag)
- Mount lenses (C-Mount)
- Use light meter (external)
- Wind spring motor (8 turns)
Shooting
- Select frame rate (12-64 fps)
- Set focus (reflex viewfinder)
- Set aperture (after metering)
- Press trigger (max. 28 sec)
- Wind spring motor again
Post-Production
- Have film developed
- Telecine or scan
- Edit digitally
- If needed: Grain adjustment
Lenses for the H16
C-Mount (Standard)
| Lens | Focal Length | Aperture | Type |
|---|---|---|---|
| Switar | 10mm | f/1.6 | Wide-angle |
| Switar | 25mm | f/1.4 | Standard |
| Switar | 75mm | f/1.9 | Telephoto |
| Yvar | 16mm | f/2.8 | Budget |
Kern Paillard Switar
The Switar lenses are legendary for their optical quality – sharper than many modern cine lenses.
Costs Today
| Item | Price |
|---|---|
| H16 REX-5 (used) | €800–€1,500 |
| Switar 25mm f/1.4 | €200–€400 |
| 100 ft Kodak Vision3 500T | ~€50 |
| Development (100 ft) | €30–€50 |
| 2K Scan (100 ft) | €50–€100 |
| Total per 2:45 min | ~€130–€200 |
H16 vs. Modern Alternatives
| Feature | Bolex H16 | Aaton A-Minima | Blackmagic Pocket |
|---|---|---|---|
| Medium | Film | Film | Digital |
| Weight | 2.2 kg | 0.8 kg | 0.7 kg |
| Run Time | 28 sec | 5.5 min | Unlimited |
| Cost/Min | ~€50 | ~€50 | ~€0 |
| Look | Film grain | Film grain | Digital |
| Workflow | Development | Development | Instant |
Today
The Bolex H16 lives on:
- Film schools use it for introductory courses
- Artists appreciate the mechanical process
- Music video directors want the vintage look
- Collectors pay premium prices
- Bolex International sells new units and spare parts
From the crafts
Perspectives
Director
Mit der H16 arbeite ich anders – keine digitale Sicherheit, kein 'wir machen noch einen Take'. Die Beschränkung macht kreativ: Ich plane genauer, inszeniere präziser, und das Ergebnis hat eine Authentizität, die digital schwer zu erreichen ist.
Producer
Eine H16 kaufen kostet 800-1500 Euro – das ist günstiger als ein Drehtag mit einer Alexa. Für Kurzfilme und Experimente perfekt. Allerdings: Filmstock (etwa 50€ pro 100ft) plus Entwicklung (30-50€) plus Scan (50-100€) summieren sich.
